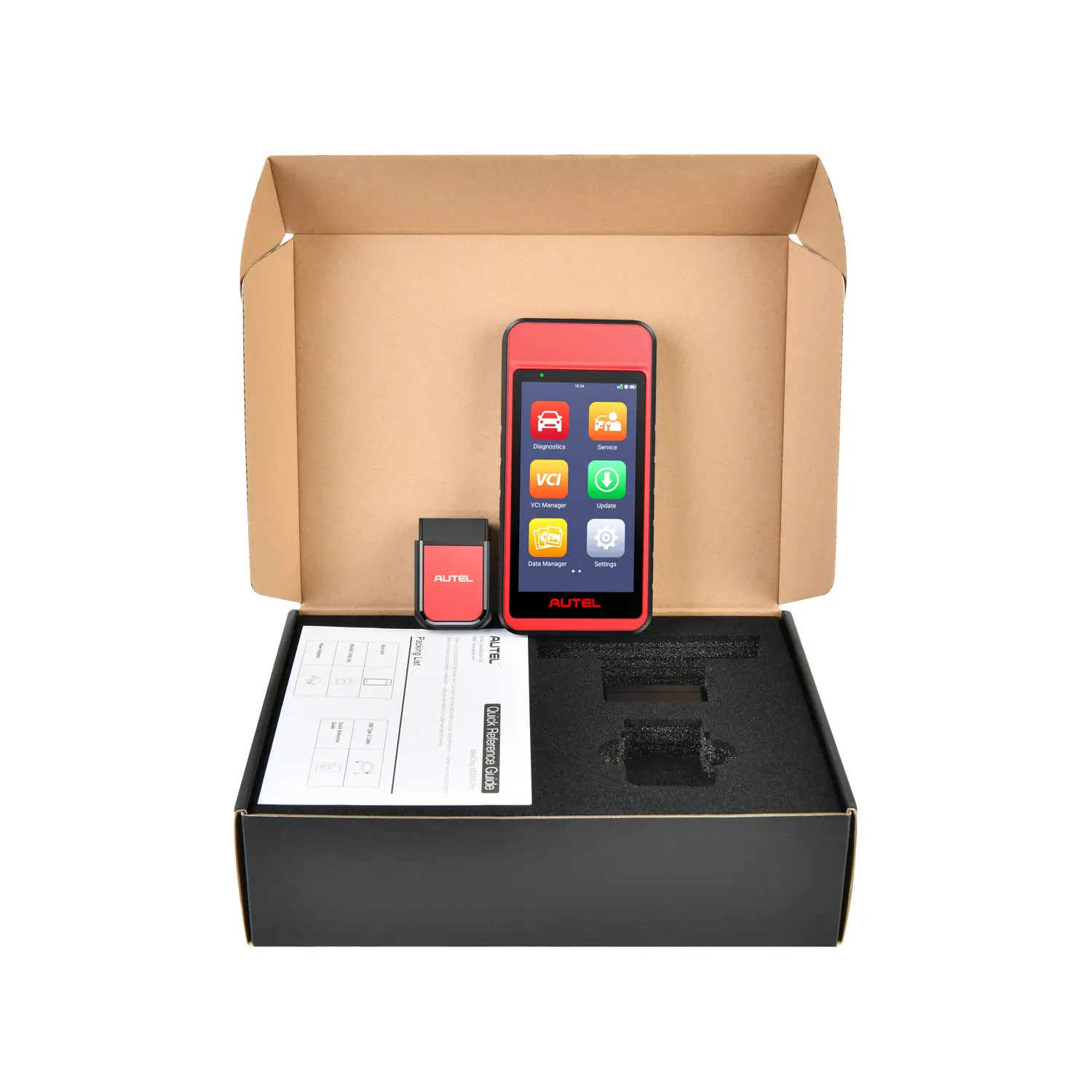

Autel MaxiDiag MD909 PRO Full System Diagnostic Scan Tool

The MaxiDiag MD909 Pro is designed to elevate your diagnostic capabilities with advanced functionality and broad vehicle coverage. As a full-system scanner, it offers a comprehensive range of service features, including oil service reset, battery registration and reset, parking brake pad relearn, steering angle sensor calibration, and diesel particulate filter regeneration. It provides full access to all available control modules, delivering accurate and efficient diagnostics across multiple vehicle systems. For enhanced diagnostic and battery analysis performance, the MD909 Pro is also fully compatible with the BT506 battery tester.

Autel MaxiDiag MD909 PRO Features

Enhanced All System Diagnostics and Service Functions

• Extensive and current year vehicle coverage for U.S., Asian, and European vehicle makes, access to all modules in all systems
• Enhanced Mode 6 diagnostics, all system AutoScan DTCs detection, reads & clears codes, views live and freezes frame data
• Support 11 service functions: OIL RESET, BREAK BLEEDING, INJECTOR, SAS, THROTTLE, EPB, BMS, TPMS, DPF, AFS Headlamp, A/F
• Support OBDII protocols & all 10 OBDII test modes, perform I/M Readiness/ Emissions testing function

Outstanding Hardware, Faster Operation

• 5.5-inch screen, 64G storage, Android-based platform, deliver user-friendly interface
• 5,000mAh battery, deliver long battery-life
• Bluetooth connectivity of VCI, more convenient in handheld operation scenarios

Advanced, expandable & cost-effective handheld system for DIY automotive maintenance sector

• Support CAN FD communication protocol, compatible with advanced automotive systems
• Access automakers security gateways, such as FCA, SFD, etc.* (You need to purchase separately)
• Expandable battery test functions, requires optional MaxiBAS BT506 purchase
• Free lifetime OTA software updates, cost-effective handheld solution

Specifications

Item	Description	MD909 PRO
Hardware	VCI	V150 Lite
	System	Android 9
	Battery	5000mAh
	Storage	64G
	Screen	5.5-inch
Function	Vehicle Coverage	Current year vehicle of Asia, Europe, America, China
	System Coverage	All
	Read/ Erase Code	●
	Live Data	●
	Security Gateway	FCA, SFD, etc.
Service	OIL RESET	●
	BREAK BLEEDING	●
	INJECTOR	●
	SAS	●
	THROTTLE	●
	EPB	●
	BMS	●
	TPMS	●
	DPF	●
	AFS Headlamp	●
	A/F	●
Extension	Battery Test(purchase BT506)	●
Communication Protocol	CAN FD	●
Software	FREE Lifetime Software	lifetime of tool
